Kismet

• Kismet is an open-source, wireless network detector, sniffer, and intrusion detection system (IDS) that is primarily used to monitor, detect, and analyze wireless networks, especially in the 802.11 (Wi-Fi) range.
• It’s widely used for Wi-Fi security auditing, network diagnostics, and penetration testing in both enterprise and personal networks.

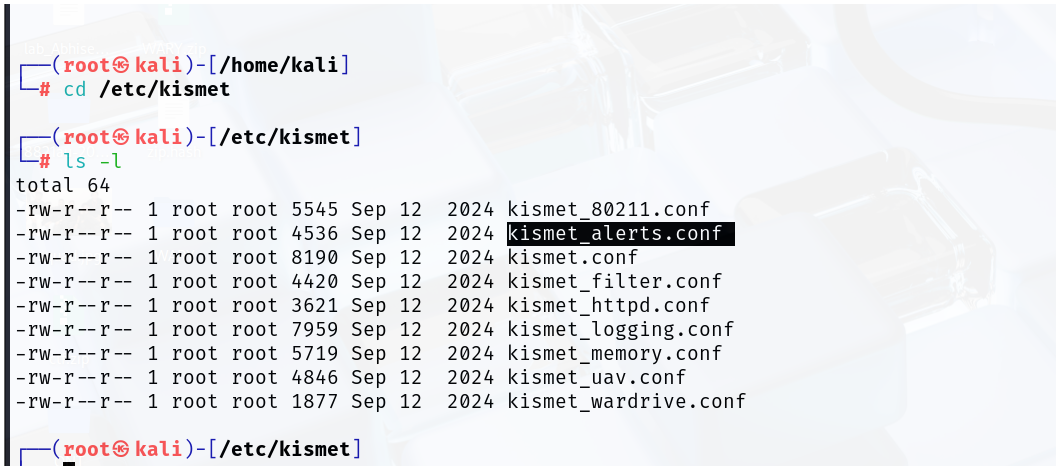

• Inside the /etc/kismet/ directory, you'll find various Kismet configuration files, which control the behavior and setup of Kismet

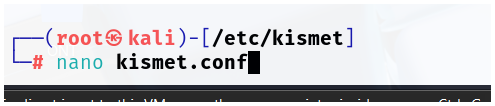

/etc/kismet/kismet.conf

• Primary configuration file.
• Controls global Kismet behavior.

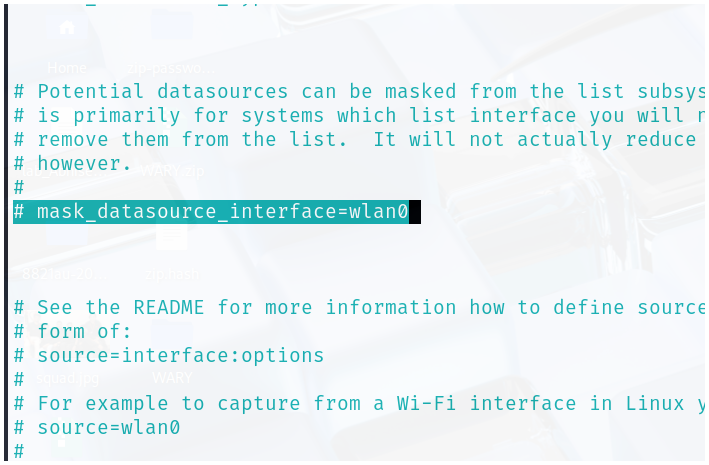

mask_datasource_interface=wlan0

✅ Reason for enabling:

This setting masks (hides) the real interface name (like wlan0) in logs, file names, and the web UI.

❓ Why this might be useful:

• For privacy/security reasons — especially if you're sharing logs publicly or in research.
• Avoids revealing personal hardware details in logs or reports.

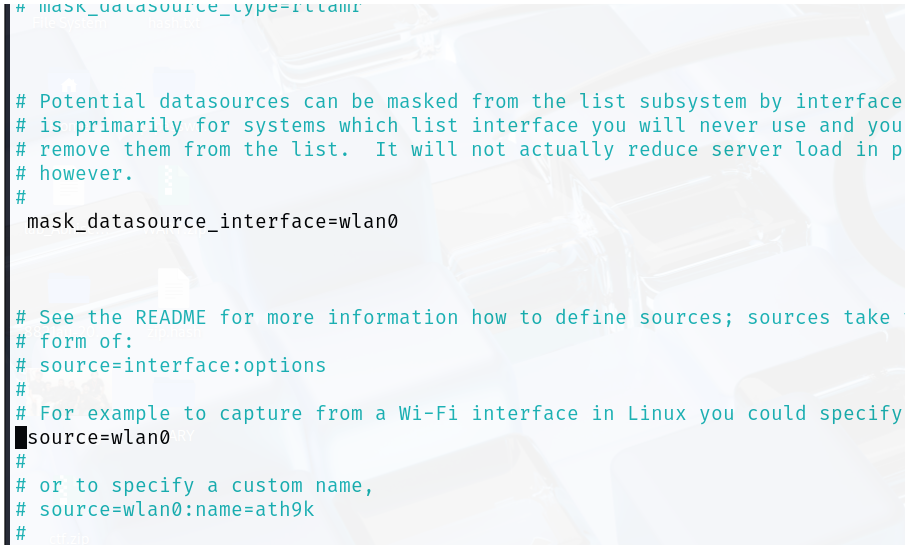

source=wlan0

✅ Reason for enabling:

This line defines the wireless interface that Kismet should use to capture packets.

❓ Why this is needed:

• Kismet doesn't automatically choose an interface.

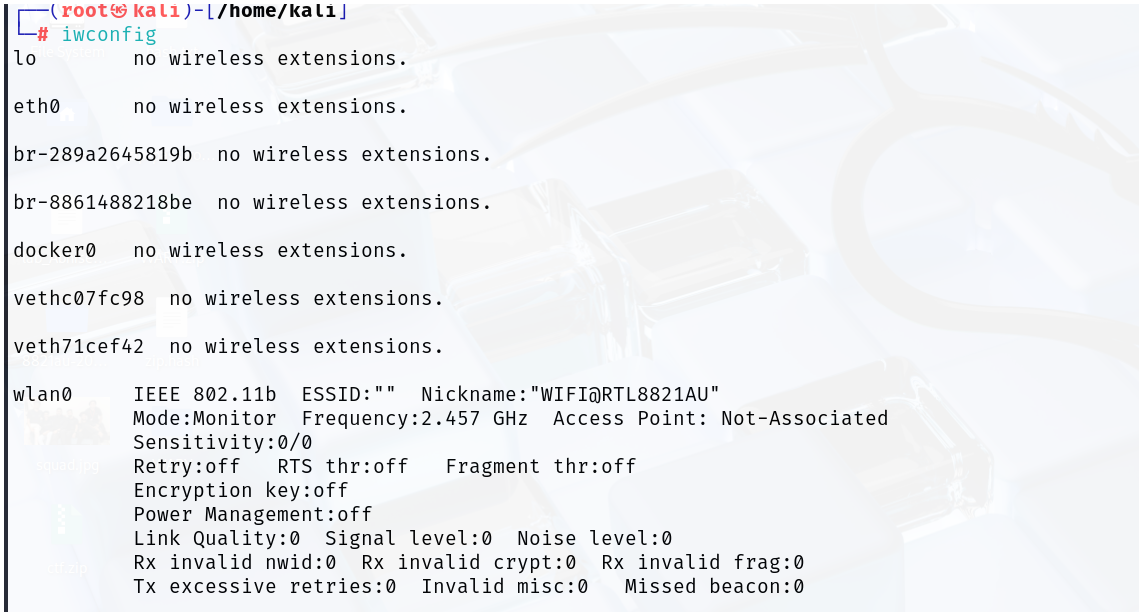

• You have to explicitly tell it which interface (like wlan0) to use.
• Without this line, Kismet wouldn't know what to listen on — and you’d likely get an error or no data.

What Data Does Kismet Collect About Wi-Fi?

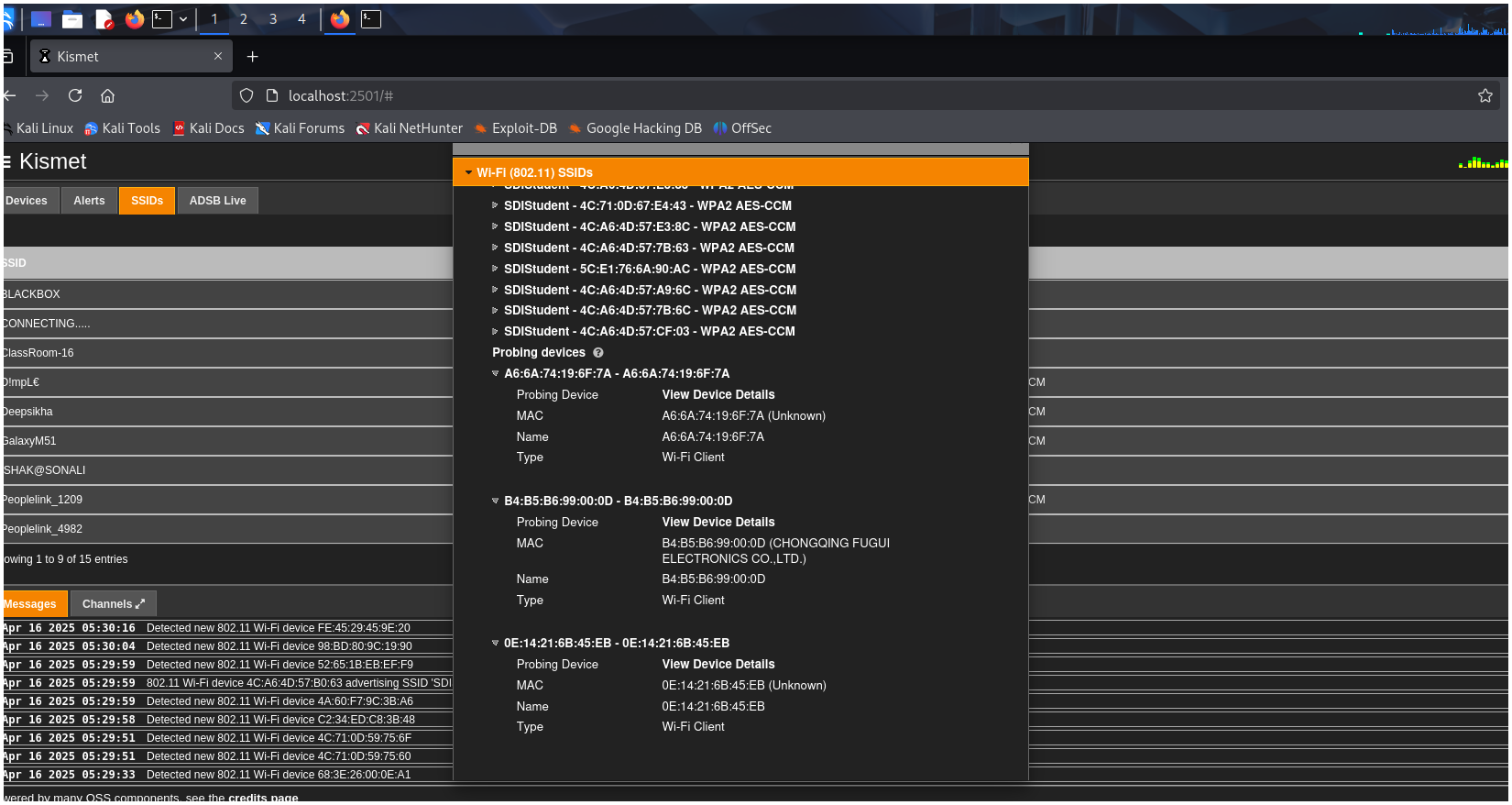

1. SSID (Network Name)

• The name of the wireless network.
• Can detect hidden SSIDs if devices are trying to connect.

2. BSSID (Access Point MAC Address)

• The unique identifier (MAC address) of each AP.
• Used to distinguish between multiple APs with the same SSID.

3. Channel Information

• The channel or frequency the network is operating on (e.g., Channel 1, 6, 11).
• Can show channel hopping or frequency shifting patterns.

4. Encryption & Authentication

• Shows what kind of security the network uses:
  • Open
  • WEP
  • WPA/WPA2/WPA3 (PSK, Enterprise)

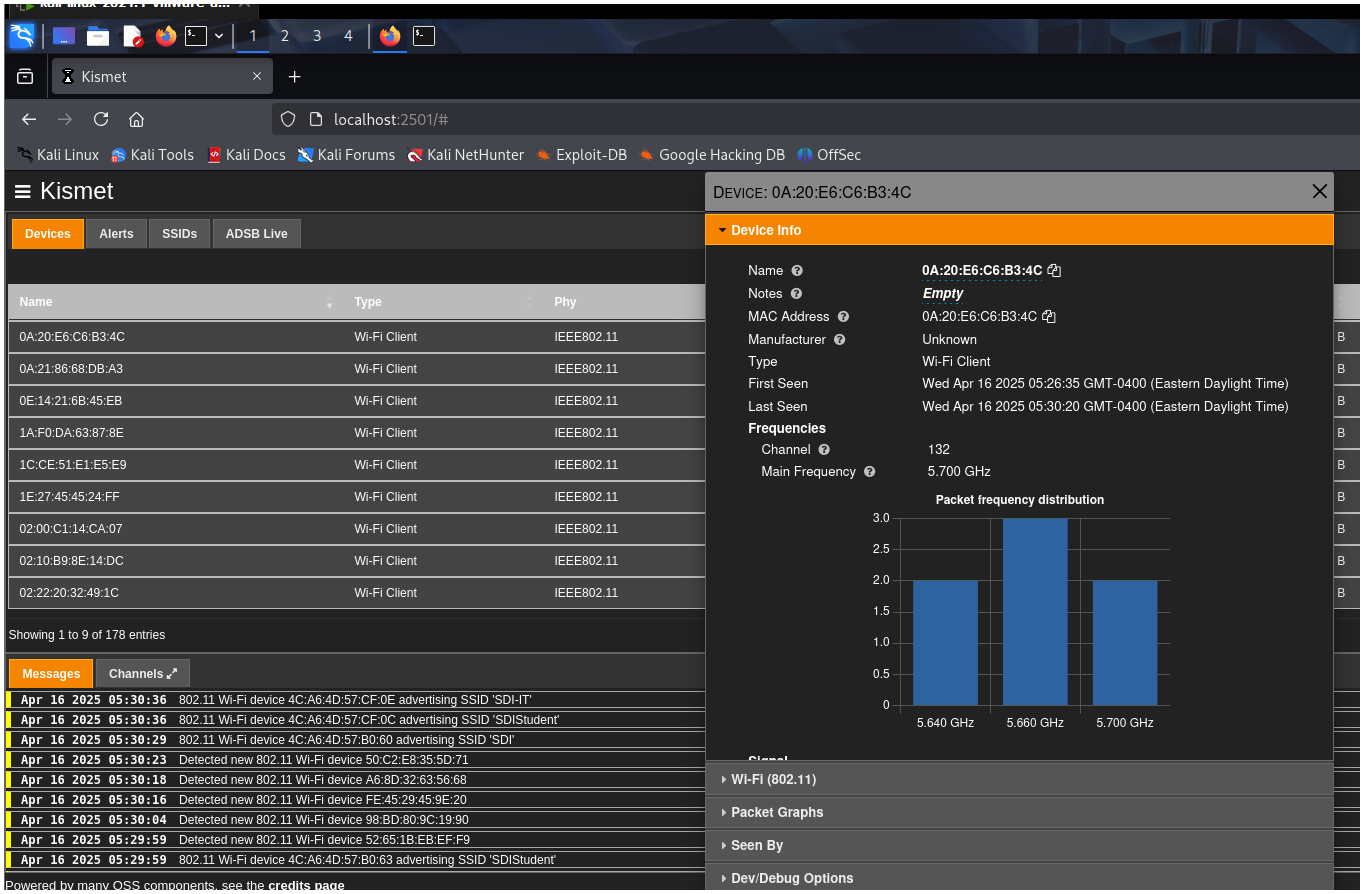

5. Connected Devices (Clients)

• Lists devices connected to each AP.
• Shows:
  • Client MAC addresses
  • Which BSSID they’re talking to
  • Whether they're active or probing for networks

6. Packet Details

• Kismet captures and decodes:

  • Beacon frames
  • Probe requests/responses
  • Association/Disassociation frames
  • Deauth packets (used in attacks)

• Can be saved as .pcap for Wireshark analysis.

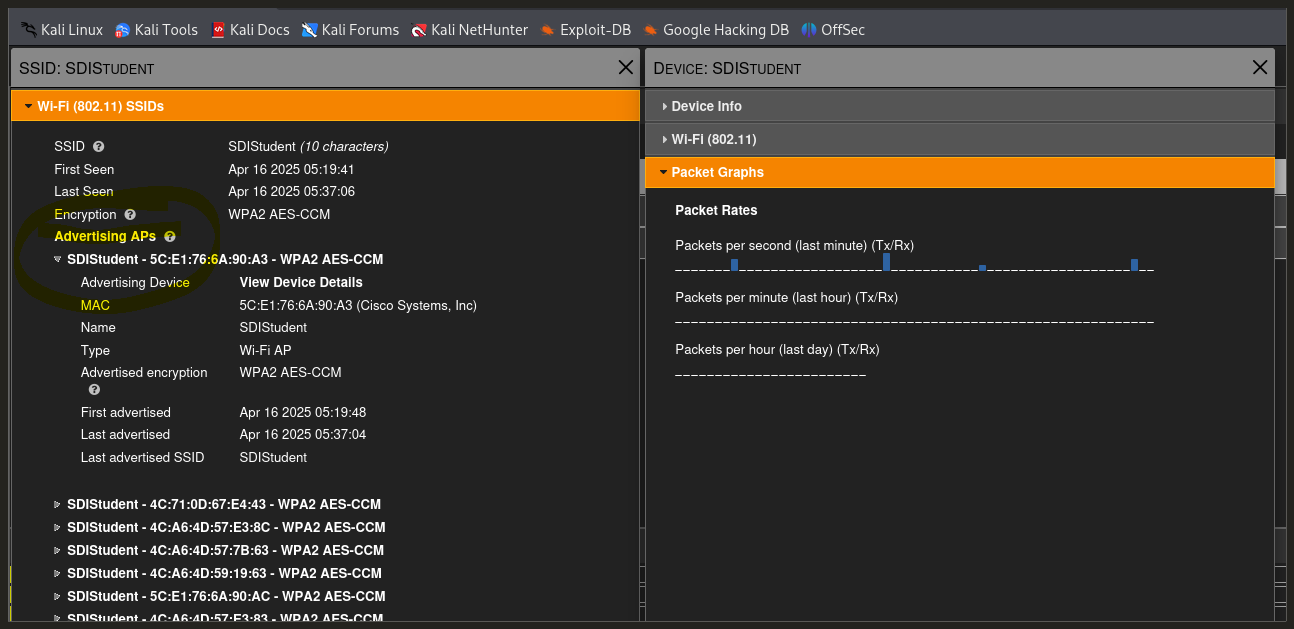

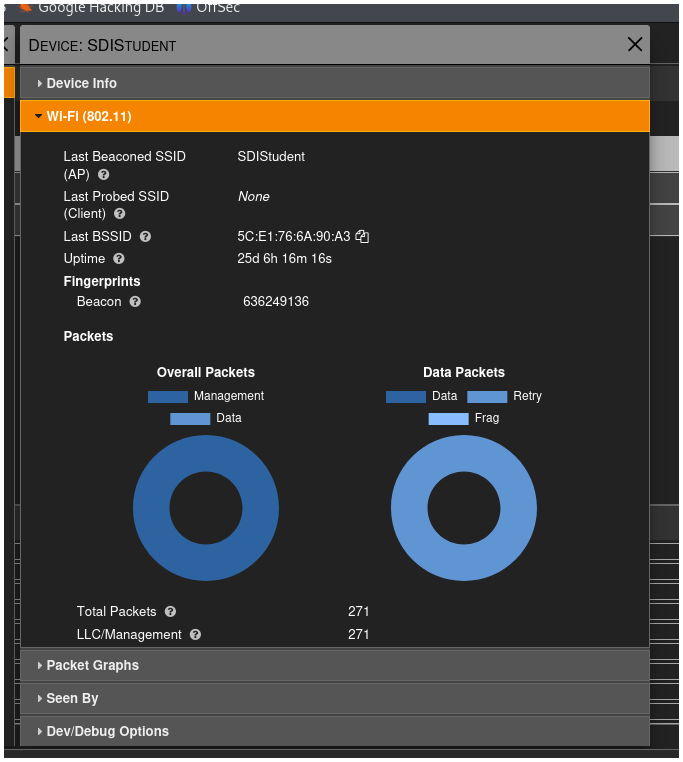

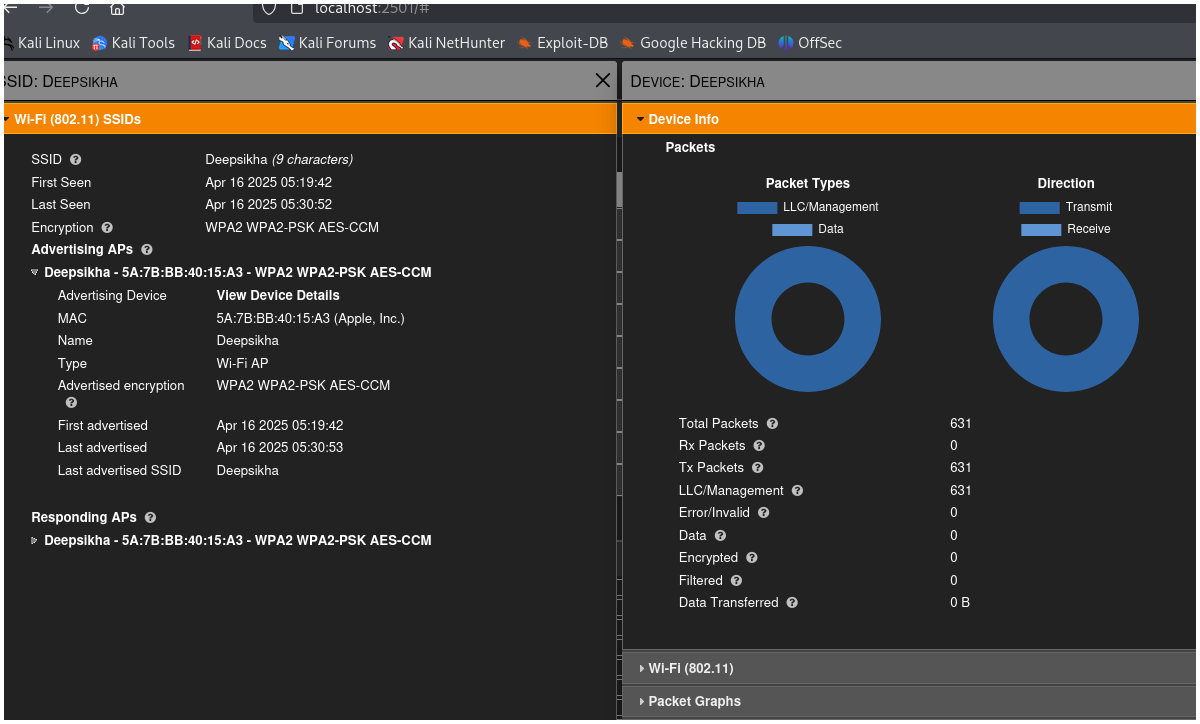

• It also shows the number of received packets and transferred packets.

Rx - received packets
Tx - Transfer packets
llc- link layer control

AP - access point (when someone is trying to connect)

SSID vs. BSSID
